Mixing and dosing unit for multi-color applications
WAGNER 2K COMFORT is a new electronically controlled mixing and dosing unit for multi-color applications. Compared to the WAGNER FlexControl Smart, it can process up to 25 colors and four components at the same time. For a highly efficient coating process, the unit can also be integrated into a field bus system.- Color change in less than one minute
Color change in less than one minute
Saves up to 90% solvent during color change
Parametrization also possible with tablet PC
Best mixing results through AIS technology, patent pending
Extended version of mixing and dosing unit 2K COMFORT
The WAGNER 2K COMFORT is also available with two fluid circuits that can be operated in parallel. This way, two different materials can be applied simultaneously with only one unit during the cycle of objects that need to be coated. This plays an important role especially for highly reactive materials that need to be physically separated from each other to avoid unit downtimes. With the two-circuit version, each material is provided with its own fluid circuit.
Simultaneous working with two fluid circuits leads to time savings
Up to 50% shorter cycle time of coated objects in comparison to predecessor model FlexControl Plus
Up to 15% lower investment costs compared to two one-circuit units
The mixing and dosing unit WAGNER 2K Smart, optionally with contactless flow measurement, can be used for any application where multicolor 2K or 3K paints are processed. Replacing the mixing and dosing unit WAGNER FlexControl Smart, the WAGNER 2K Smart can be used to process a wide range of workpieces from all kinds of application segments.
Consistent mixing ratios – you can choose the ideal flow measurement system for each material and application: Gear flow meter, Coriolis flow meter or WAGNER stroke sensor (indirect flow measurement without material contact, ideal for abrasive materials)
Homogeneous coating results with WAGNER AIS (Adaptive Injection System) which adapts the injection of the hardener automatically to changing material flow rates
High process reliability by trouble-free addition of a third component – no manual mixing effort thanks to automatic dilution and adjustment of the mixing ratio
Slim cabinet for the electrostatic processing of water-based lacquers with max. two automatic guns. Completely insulated construction with internal charging of the materials for manual spraying applications, Airspray and AirCoat. Suitable for low pressure guns (GA 2800EAW & WA 900) or high pressure guns (GA 4000).
Slim cabinet for the electrostatic processing of water-based lacquers and separating agent with manual guns. Completely insulated construction with internal charging of the materials for manual spraying applications, AirSpray and AirCoat. Basic spray sets including cabinet & control unit, pump set, and guns available, can also be customized.
Large cabinet for the electrostatic processing of water-based lacquers with max. two automatic guns. Completely insulated construction with internal charging of the materials for manual spraying applications, AirSpray and AirCoat. Suitable for low pressure guns (GA2800EAW & WA900) or high pressure guns (GA 4000).
Large cabinet for the electrostatic processing of water-based lacquers and separating agent with manual guns. Completely insulated construction with internal charging of the materials for manual spraying applications, AirSpray and AirCoat. Basic spray sets including cabinet & control unit, pump set, and guns available, can also be customized.

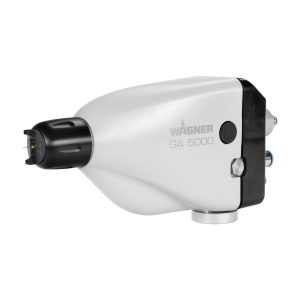

With the automatic electrostatic gun GA 5000 EA, up to 50% material and 20% coating time can be saved. Furthermore it also offers wide-ranging opportunities in terms of ideal application control in combination with the control unit EPG 5000.
High application efficiency through soft spray jet
High coating quality through fine atomization
Even curves and inaccessible locations can be coated with high quality
Short maintenance times thanks to easy assembly & disassembly
Manual or automatic control via external interface
With the automatic electrostatic gun GA 5000 EAC, up to 50% material and 20% coating time can be saved. Furthermore it also offers wide-ranging opportunities in terms of ideal application control in combination with the control unit EPG 5000.
High application efficiency through soft spray jet
High coating quality through fine atomization
Even curves and inaccessible locations can be coated with high quality
Short maintenance times thanks to easy assembly & disassembly
Manual or automatic control via external interface
With the automatic electrostatic gun GA 5000 EACW, up to 50% material and 20% coating time can be saved. Furthermore it also offers wide-ranging opportunities in terms of ideal application control in combination with the control unit VM 5020 WA of the AquaCoat system.
High application efficiency through soft spray jet
High coating quality through fine atomization
Even curves and inaccessible locations can be coated with high quality
Short maintenance times thanks to easy assembly & disassembly
Manual or automatic control via external interface
With the automatic electrostatic gun GA 5000 EAW, up to 50% material and 20% coating time can be saved. Furthermore it also offers wide-ranging opportunities in terms of ideal application control in combination with the control unit VM 5020 WA of the AquaCoat system.
High application efficiency through soft spray jet
High coating quality through fine atomization
Even curves and inaccessible locations can be coated with high quality
Short maintenance times thanks to easy assembly & disassembly
Manual or automatic control via external interface
High-pressure, double diaphragm pump, Consistal. For AirCoat and Airless applications up to 2.5 l/min and 250 bar. Ideal for everything from the individual lacquer station to complex multi-paint systems.
High-pressure piston diaphragm pump. Universally applicable for aggressive, abrasive, and shear-sensitive materials. Extremely low flushing agent consumption. For all applications up to 250 bar and 5 L/min multiple gun use.
Control unit for electrostatic automatic gun GA 5000
The EPG 5000 controls all WAGNER electrostatic automatic guns from the type GA 5000 for solvent-based paints. The control takes place manually or automatically via an external interface. This interface can be used to set and optimize all electric parameters in the coating process. The high tension can be variably adjusted in real-time in accordance with the contour of the workpiece.
